Beskrivning

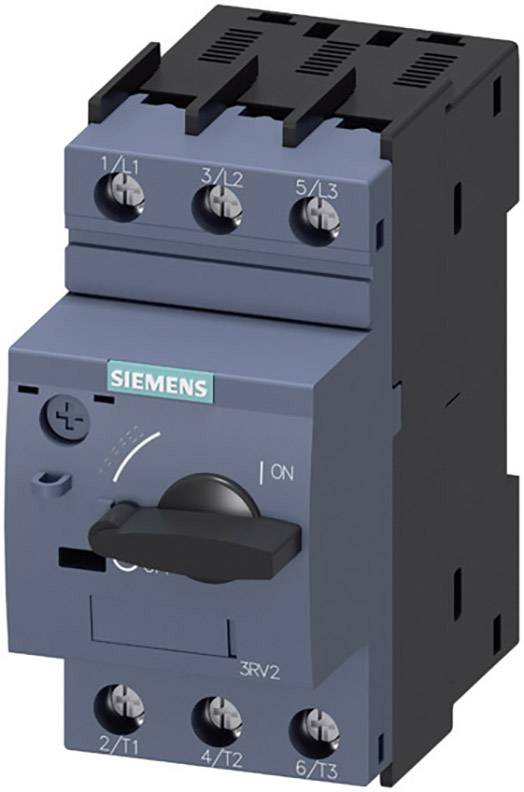

Circuit breaker size S00 for motor protection, CLASS 10 A-release 10…16 A N-release 208 A screw terminal Standard switching capacity Circuit breaker SIRIUS 3RV2 For motor protection for the reliable shutdown in the event of a short-circuit and for protecting the loads and system against overload, and for safe isolation of the system from the network.Thanks to their low heat loss, the compact and climate-resistant circuit breakers are optimized for use in load feeders, and also for IE3/IE4 motors, of course, and equally for the switching of direct current. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course.Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, and optionally with integral auxiliary switch.The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, signaling switches etc. is standardized for all sizes. The use of different energy infeed options, such as the associated SIRIUS 3RV29 infeed system, considerably reduces the main circuit wiring.The 3RV2 circuit breakers replace the well-proven 3RV1 series.Simple, efficient and always up to date – SIRIUS modular system.

Circuit breaker size S00 for motor protection, CLASS 10 A-release 10…16 A N-release 208 A screw terminal Standard switching capacity Circuit breaker SIRIUS 3RV2 For motor protection for the reliable shutdown in the event of a short-circuit and for protecting the loads and system against overload, and for safe isolation of the system from the network.Thanks to their low heat loss, the compact and climate-resistant circuit breakers are optimized for use in load feeders, and also for IE3/IE4 motors, of course, and equally for the switching of direct current. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course.Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, and optionally with integral auxiliary switch.The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, signaling switches etc. is standardized for all sizes. The use of different energy infeed options, such as the associated SIRIUS 3RV29 infeed system, considerably reduces the main circuit wiring.The 3RV2 circuit breakers replace the well-proven 3RV1 series.Simple, efficient and always up to date – SIRIUS modular system.

Typ av produkt

Brytare

Typ

3RV2011-4AA10

Konstruktionsstorlek

S00

Inställningsområde ström (min.)

10

Inställningsområde ström (max.)

16

Inställningsområde (ström)

10 – 16 A

Antal poler

3-polig

Växelspänning (max.)

690

Montageart

DIN-skena

Min. temperatur

-20

Max. temperatur

+60

Anslutning

Skruv

Skyddsklass

IP20

Djup

97

Bredd

45

Höjd

97

Mått.

(B x H x D) 45 x 97 x 97 mm

Innehåll

1

RoHS-godkänd

Ja

Tillverkarfärg

Flerfärgad

Vikt

0.36

Width

45

Height

97

Depth

97

Rated operation power at AC-3, 400 V

7.5

With integrated auxiliary switch

FALSE

Rated permanent current Iu

16

With integrated under voltage release

FALSE

Number of poles

3

Rated operating voltage

690-690

Overload release current setting

10-16

Degree of protection (IP)

IP20

With thermal overload protection

TRUE

Type of electrical connection of main circuit

Screw connection

Type of control element

Turn button

Switch off technique

Magnetic

Rated operation power at AC-3, 230 V

4

Rated short-circuit breaking capacity Icu at 400 V, AC

55

Phase failure sensitive

TRUE

Device construction

Built-in device fixed built-in technique
