Beskrivning

Typ av produkt

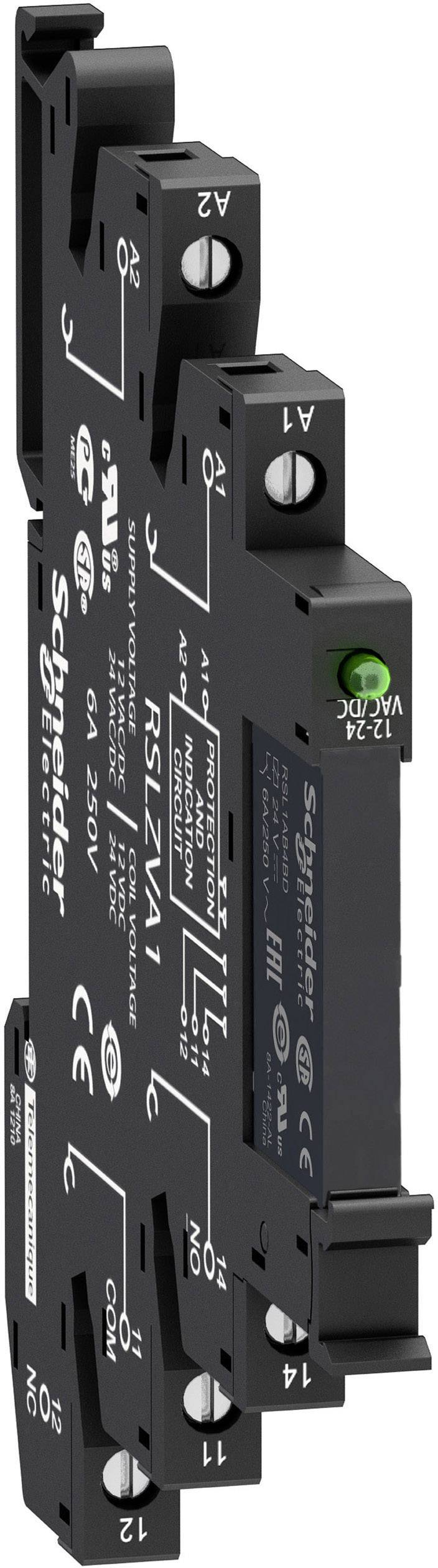

Insticks-relä

Typ

RSL1PVBU

Anslutning

Skruvklämma

Tillverkarfärg

Antracit (matt)

Kontakttyp

1 switch

Kontaktmaterial

AgSnO₂

Nominell spänning

24

Växelspänning (max.)

277

Växelström (max)

6

Max. bryteffekt

1500

Mekanisk livslängd

10 000 000 cykler

funktioner

Med brygglikriktare

Skyddsklass

IP40

Max. temperatur

+70

Min. temperatur

-40

Djup

78.6

Bredd

6.2

Höjd

95

Mått.

(B x H x D) 6.2 x 95 x 78.6 mm

Innehåll

1

Vikt

29

Nominal current

6

Width

6.2

Height

78.6

Depth

95

With detachable clamps

TRUE

Drive, polarization

Polarity free

Drive, switching attitude

Mono stable

With forced-guided contacts

TRUE

Type of switch contact

Single contact

Complete with socket

TRUE

Type of electric connection

Screw connection

Rated control supply voltage AC 50 Hz

24-24

Rated control supply voltage AC 60 Hz

24-24

Rated control supply voltage DC

24-24

Material of contact surface

Other

Degree of protection (IP)

IP40

With LED indication

TRUE

Material contact

Other

Voltage type for actuating

AC/DC

Number of contacts as normally closed contact

0

Number of contacts as normally open contact

0

Number of contacts as change-over contact

1

Material of contact insert

Other
