Beskrivning

Typ av produkt

Expansionsmodul

Höjd

270

Bredd

44

Typ

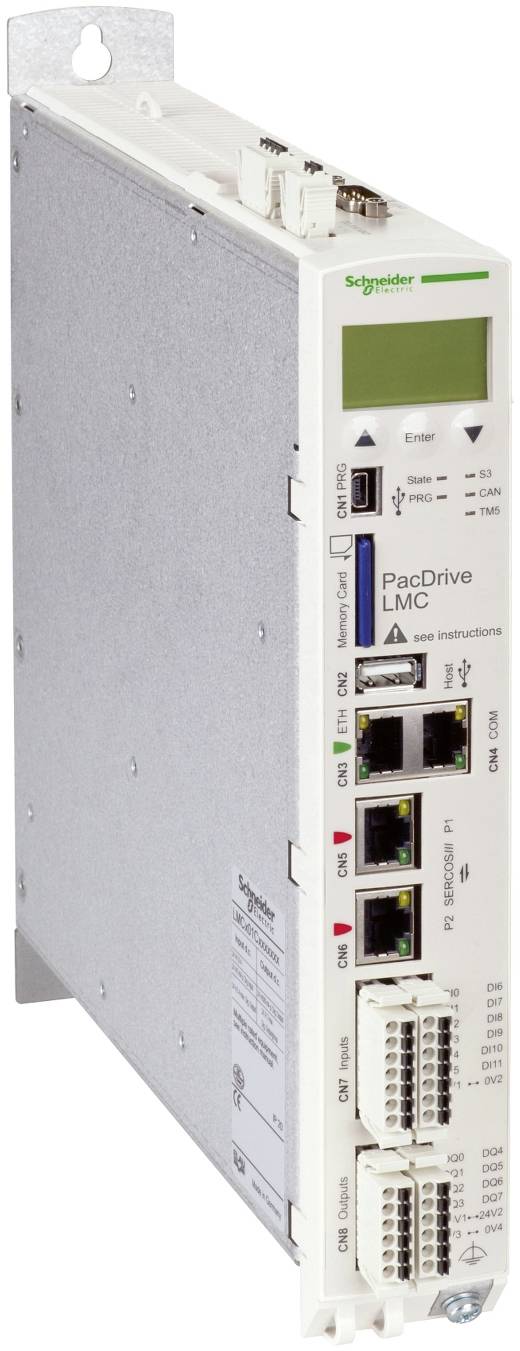

LMC201CAA170RC

Tillverkarnr.

LMC201CAA170RC

Mått.

(B x H x D) 44 x 270 x 222 mm

Djup

222

Width

44

Model

Modular

Height

270

Depth

222

With display

TRUE

Suitable for safety functions

FALSE

Number of digital inputs

8

Number of digital outputs

8

Number of analogue inputs

0

Number of analogue outputs

0

Voltage type (supply voltage)

DC

Type of memory

NVRAM

Memory size

128

Processing time (1K, binary operation)

0.002

Supporting protocol for LON

FALSE

Number of HW-interfaces industrial Ethernet

1

Number of HW-interfaces RS-232

1

Number of HW-interfaces RS-422

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

1

Number of HW-interfaces parallel

0

Number of HW-interfaces other

1

With optical interface

FALSE

Additional program memory possible

FALSE

Supporting protocol for TCP/IP

FALSE

Supporting protocol for ASI

FALSE

Supporting protocol for PROFIBUS

FALSE

Supporting protocol for CAN

TRUE

Supporting protocol for INTERBUS

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for Modbus

FALSE

Supporting protocol for Data-Highway

FALSE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for SUCONET

FALSE

Supporting protocol for other bus systems

FALSE

Redundancy

FALSE

Suitable for rail mounting

FALSE

Explosion safety category for gas

None

Explosion safety category for dust

None

System accessory

FALSE

Appendant operation agent (Ex ia)

FALSE

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for SERCOS

TRUE

Supporting protocol for INTERBUS-Safety

FALSE

Number of interfaces PROFINET

0

Number of HW-interfaces wireless

0

Front built-in possible

FALSE

Rack-assembly possible

TRUE

Wall mounting/direct mounting

TRUE

Radio standard Bluetooth

FALSE

Radio standard WLAN 802.11

FALSE

IO link master

FALSE

Number of relay outputs

0

Max. number of time switches

0

Performance level according to EN ISO 13849-1

None

Supporting protocol for AS-Interface Safety at Work

FALSE

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

TRUE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for SafetyBUS p

FALSE

Supply voltage DC

24-24

Radio standard GPRS

FALSE

Radio standard GSM

FALSE

Mobile communications standard 3G (UMTS)

FALSE

Long-Term Evolution (LTE)

FALSE

SIL according to IEC 61508

None

Supporting protocol for IEC 61850 Ethernet

FALSE

Supporting protocol for DNP3

FALSE

Supporting protocol for IEC 60870

FALSE

Supporting protocol for EtherCAT

TRUE

Certified for UL hazardous location class I

FALSE

Certified for UL hazardous location class II

FALSE

Certified for UL hazardous location class III

FALSE

Certified for UL hazardous location division 1

FALSE

Certified for UL hazardous location division 2

FALSE

Certified for UL hazardous location group A (acetylene)

FALSE

Certified for UL hazardous location group B (hydrogen)

FALSE

Certified for UL hazardous location group C (ethylene)

FALSE

Certified for UL hazardous location group D (propane)

FALSE

Certified for UL hazardous location group E (metal dusts)

FALSE

Certified for UL hazardous location group F (carbonaceous dusts)

FALSE

Certified for UL hazardous location group G (non-conductive dusts)

FALSE
