Beskrivning

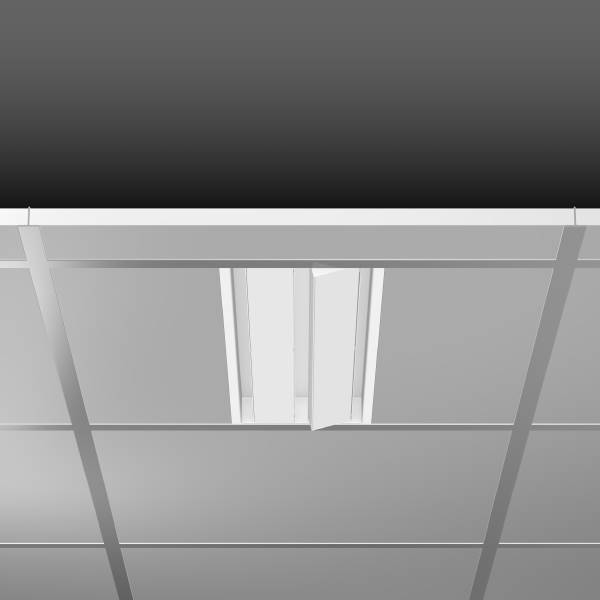

Infälld/utanpåliggande strålkastare Hölje pulverlackerad stålplåt 2×90° vertikalt svängbar. Högeffektiva LED-enheter med jämna, opala diffusor av utgulningsfri PMMA. Ljusflödet är symmetriskt strålande. Lämplig för att lägga i rastertak modul 600. Inklusive ansluten driftenhet i separat enhetsbox. Lämplig för kabelgenomföring. MultiLumen: Ljusflödet kan ställas in i 3 nivåer. Tillbehör: Monteringsram för montering i undertak.

Infälld/utanpåliggande strålkastare Hölje pulverlackerad stålplåt 2×90° vertikalt svängbar. Högeffektiva LED-enheter med jämna, opala diffusor av utgulningsfri PMMA. Ljusflödet är symmetriskt strålande. Lämplig för att lägga i rastertak modul 600. Inklusive ansluten driftenhet i separat enhetsbox. Lämplig för kabelgenomföring. MultiLumen: Ljusflödet kan ställas in i 3 nivåer. Tillbehör: Monteringsram för montering i undertak.

Typ av produkt

LED-inbyggnadsbelysning

Energiklass

n.rel.

Protection class according to IEC 61140

I

Width

190

Reflector

None

Lamp holder

None

Conductor cross section

1.50

Connection type

Push-in clamp

Housing colour

White

Surface protection

Powder coating

Voltage type

AC

With movement sensor

FALSE

Suitable for lamp power

35-68

Type of control gear

LED operating device current-controlled

Colour rendering index CRI

80-89

Suitable for wall mounting

FALSE

Built-in width

174

With light sensor

FALSE

Suitable for suspended mounting

FALSE

Number of poles

3

Length

597

Height/depth

39

Lamp type

LED not exchangeable

Built-in length

577.50

Light outlet

Direct

Light distribution

Symmetric

Impact strength

IK03

Nominal voltage

220-240

Emergency power supply integrated

FALSE

Degree of protection (IP)

IP20

With light source

TRUE

Luminaire with limited surface temperature, sign ”D“ according to EN 60598-2-24

FALSE

Covering of the luminaire with thermally insulating material possible

FALSE

Suitable for number of light sources

2

Suitable for built-in mounting

TRUE

With control gear

TRUE

Suitable for workplace according to EN 12464-1

FALSE

Suitable for surface mounting

FALSE

Beam angle

> 80° – Extreme wide beam

Surface brushed

FALSE

Colour temperature

4000-4000

Max. system power

68

Rated luminous flux according to IEC 62722-2-1

4900

Colour of light

White

Adjustability

Swivelling

Suitable for traverse mounting

FALSE

Suitable for pedestal/floor mounting

FALSE

Suitable for light-track mounting

FALSE

Suitable for clamp-mounting

FALSE

Constant light output (CLO)

FALSE

IFTTT support available

FALSE

Luminous flux

4900-4900

Type of wiring

Suitable for loop-through wiring

Rated life time L80/B10 at 25 °C

50000

Colour consistency (McAdam ellipse)

SDCM3

Total harmonic distortion

0.20

Photobiological safety according to EN 62471

RG1

Degree of protection (NEMA)

Other

Rated ambient temperature according to IEC 62722-2-1

5-25

Filament test according to IEC 60695-2-11

850 °C – 30 s

LED nominal current at constant current

146-159

Dimming 0-10 V

FALSE

Dimming 1-10 V

FALSE

Dimming DALI

FALSE

Dimming DMX

FALSE

Dimming potentiometer (integrated)

FALSE

Dimming GPRS

FALSE

Dimming LineSwitch

FALSE

Dimming manufacturer’s proprietary system

FALSE

Dimming mains voltage modulation

FALSE

Dimming phase cut-off (trailing edge)

FALSE

Dimming phase cut-on (leading edge)

FALSE

Dimming programmable

FALSE

Dimming RF

FALSE

Dimming Sine Wave Reduction

FALSE

Dimming Touch and Dim

FALSE

Dimming Zigbee

FALSE

Dimming with push-button

FALSE

No dim function

TRUE

Light distributor

None

Dimming depending on control gear

FALSE

Luminaire efficacy

140

Suitable for low voltage cable system

FALSE

Dimming DSI

FALSE

Unified Glare Ratio (UGR)

28

Compatible with Apple HomeKit

FALSE

Compatible with Google Assistant

FALSE

Compatible with Amazon Alexa

FALSE

Max. number of luminaires per miniature circuit breaker C16 (MCB)

18

Max. number of luminaires per miniature circuit breaker B16 (MCB)

11

Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)

80

Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)

10

Dimming DALI-2

FALSE

Colour of light adjustable

No

Luminous flux adjustable

Positions

Beam angle adjustable

No

Exchangeable control gear

TRUE

Suitable for ceiling mounting

TRUE

Built-in height/depth

100

Power factor

0.90
